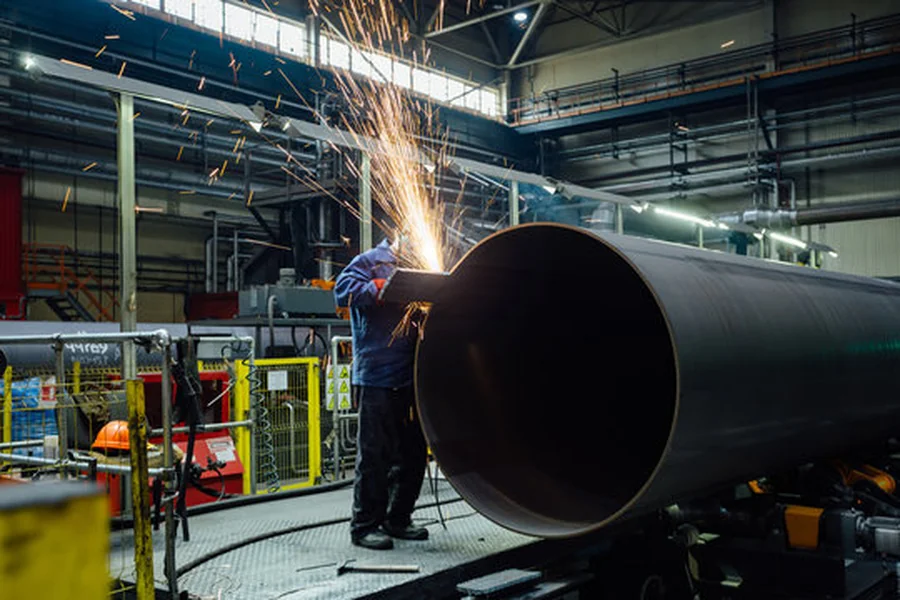

A welder using a torch to tack weld two pipes, ensuring proper alignment and stability before final welding.
Precision and stability are crucial in the metal fabrication sector, especially when working with pipes and tubes. Holding two large pipes while securing them with a full weld can be quite tasking. Without proper support, the pipes could shift, resulting in misalignment, wasted materials, and additional work. This is where tack welding steps in as a critical tool.
In pipe and tube fabrication, where alignment and stability are vital, these small welds serve as the backbone of a successful project. Tack welding ensures that pipes remain properly aligned, preventing costly mistakes during the final welding process.
For fabricators, using tack welds means improved efficiency, reduced risk of errors, and higher-quality results. But how exactly does this method support pipe and tube fabrication? This article will explore the role of tack Welding for pipe and tube fabrication and how to choose the right tack welding method for tubular structure.
Tack Welding for Pipe and Tube Fabrication
Tack welding is a cornerstone of pipe and tube fabrication, ensuring that the welding process proceeds smoothly and efficiently. Pipes and tubes are used extensively in industries like construction, oil and gas, plumbing, and manufacturing. These components often carry fluids or gases under high pressure, making precision and strength critical.
1. Ensures Accurate Alignment
Tack welding is essential in pipe and tube fabrication because it ensures accurate alignment of components. Pipes and tubes must fit perfectly to avoid misalignment, which can lead to structural weaknesses or functional issues. Tack welds temporarily hold the parts in place, allowing for precise final welds.
2. Prevents Movement During Welding
It also prevents movement during welding by stabilizing the components. Pipes and tubes can shift or warp due to the intense heat of welding, but tack welds minimize this risk, maintaining their correct position.
3. Reduces Errors and Rework
By reducing errors and rework, tack welding saves both time and materials. Misaligned joints or weak connections often require corrections, but with tack welds in place, the chances of such defects are significantly reduced.
4. Improves Safety
Tack welding improves safety by securely holding pipes and tubes in position, reducing the likelihood of accidents during fabrication. This stability allows welders to work more confidently and efficiently in potentially hazardous environments.
5. Facilitates Complex Fabrication Tasks
It facilitates complex fabrication tasks by providing a stable framework for intricate assemblies. Tack welds allow for easy adjustments before finalizing the welds, ensuring precise connections in complex projects.
Techniques for Aligning Pipes with Tack Welds
Detailed view of small, evenly spaced tack welds on a pipe joint, securing the structure for further welding.
Proper alignment is crucial when working with pipes, as even a slight misalignment can cause weak joints or system failure. Tack welding provides a reliable way to hold pipes in place while ensuring precision during the final welding process. Here are some common techniques used to align pipes with tack welds:
1. Use of Clamps and Fixtures
Clamps and fixtures are essential tools for aligning pipes before tack welding. These devices hold the pipes securely in place, preventing them from shifting during the welding process. Once the pipes are clamped together, small tack welds can be applied to lock the alignment. This method is commonly used for straight joints and ensures consistent results.
2. Aligning with Root Gap Spacers
Root gap spacers help maintain the correct distance between two pipe edges before welding. These spacers are placed between the pipes to ensure an even gap, which is critical for strong and uniform welds. Tack welds are then applied at regular intervals to hold the pipes in place, ensuring the root gap remains consistent.
3. Rotating the Pipe for Uniform Tack Welds
In some cases, welders rotate the pipe slowly while applying tack welds at evenly spaced points around the joint. This technique ensures uniform alignment and prevents the pipe from shifting as the weld cools. Rotating the pipe is especially useful for large-diameter pipes or when working on circular joints.
4. Cross-Marking for Precise Alignment
Cross-marking involves marking alignment points on both pipes to ensure they fit perfectly together. These marks serve as a guide, making it easier to position the pipes accurately. After aligning the marks, tack welds are applied at key points to secure the pipes in place. This technique is ideal for ensuring precise alignment, especially in critical applications.
5. Using Pipe Jigs for Complex Assemblies
When working with complex pipe assemblies or angled joints, pipe jigs are highly effective. These custom-made tools are designed to hold pipes in specific positions, ensuring accurate alignment. Tack welds can be applied while the pipes are held securely in the jig, simplifying the welding process and reducing errors.
6. Double-Check with Levels and Straight Edges
Before applying tack welds, welders often use levels and straight edges to double-check the alignment of the pipes. This ensures that the pipes are perfectly straight and properly aligned. Tack welds are then added to maintain this alignment throughout the welding process.
Choosing the Right Tack Welding Method for Tubular Structures
Tack welding is vital in keeping tubular structures aligned and stable during fabrication. Choosing the right method depends on the material, joint design, and project requirements. Below are key tack welding methods to consider:
1. TIG Welding for Precision
TIG (Tungsten Inert Gas) welding is ideal for creating clean and precise tack welds. It’s often used for tubular structures in industries like aerospace and automotive, where accuracy and minimal spatter are critical. TIG welding is especially suitable for thin-walled tubes that require controlled heat to avoid distortion.
2. MIG Welding for Speed
MIG (Metal Inert Gas) welding is a fast and efficient method for large-scale tubular projects. It creates strong tack welds quickly and is versatile for joining various metals. This method is commonly used in construction and manufacturing, where speed and productivity are key.
3. Stick Welding for Heavy-Duty Applications
Stick welding, or Shielded Metal Arc Welding (SMAW), is best for heavy-duty tubular structures like pipelines and industrial machinery. It produces robust tack welds capable of handling high stress and is effective for thicker materials, making it ideal for demanding environments.
4. Spot Welding for Thin Materials
Spot welding is perfect for tubular structures made from thin sheets. It applies localized heat to create small, strong welds without affecting the surrounding material. This method is often used in lightweight applications, ensuring stability without distorting the structure.
5. Clamp-Assisted Tack Welding
For straight joints, clamp-assisted tack welding ensures perfect alignment before the welds are applied. The clamps hold the pipes securely, allowing the welder to place tack welds precisely. This technique is simple yet effective for maintaining stability during fabrication.
6. Rotational Tack Welding for Circular Joints
Rotational tack welding is used for round or cylindrical tubular structures. The pipe is rotated, and tack welds are applied at evenly spaced points around the joint. This ensures uniform alignment and prevents warping, especially for large-diameter pipes.
Applications in Plumbing, Oil, and Gas Industries
Pipes held in place with clamps, ready for tack welding to ensure accurate alignment.
Tack welding plays a crucial role in industries like plumbing, oil, and gas, where strong and precise connections are essential. Below are some key applications of tack welding in these fields:
1. Plumbing Systems
In plumbing, tack welding helps create secure joints for pipes that carry water, gas, or other fluids. It ensures the pipes are aligned correctly before the final welds are applied. This is important to prevent leaks, maintain pressure, and ensure the plumbing system operates efficiently. Tack welding is particularly useful for joining pipes in tight spaces, where precision is critical.
2. Oil Pipelines
Tack welding is widely used in the oil industry to fabricate pipelines that transport crude oil and other petroleum products. These pipelines must withstand high pressure and harsh environmental conditions. Tack welds temporarily hold the pipes in place, ensuring perfect alignment for the final welds, which strengthens the pipeline and prevents failures.
3. Gas Transmission Lines
In the gas industry, tack welding ensures the safe and efficient assembly of pipelines used for transporting natural gas or other gases. Proper alignment is crucial to avoid leaks, which could lead to dangerous explosions or environmental hazards. Tack welding provides a stable framework for completing the final welds, ensuring safety and reliability.
Avoiding Common Tack Welding Issues in Pipework
Tack welding is an important step in pipe fabrication, but if not done properly, it can lead to problems that affect the quality and strength of the final weld. Here are common tack welding issues and how to avoid them:
1. Misalignment of Pipes
One of the most frequent problems is pipe misalignment, which can weaken the joint and disrupt the flow of liquids or gases. To avoid this, always use clamps, fixtures, or alignment tools to hold the pipes in place before applying tack welds. Double-check the alignment with levels or measuring tools to ensure accuracy.
2. Cracking in Tack Welds
Cracks can form in tack welds if the welding technique isn’t correct or the material cools too quickly. This weakens the joint and may cause it to fail under stress. To prevent cracking, ensure proper preheating of the pipes, especially for thicker materials. Additionally, use a welding method suitable for the pipe material, such as TIG welding for more delicate metals.
3. Insufficient Tack Welds
Using too few tack welds can result in unstable pipe joints that shift or warp during final welding. To avoid this, apply tack welds at multiple points around the joint, especially for large or heavy pipes. Distribute the welds evenly to keep the joint secure and prevent movement.
4. Excessive Heat Input
Excessive heat during tack welding can distort the pipes or cause burn-through, especially with thin-walled pipes. To prevent this, use low heat settings and short welds. Techniques like TIG welding can help control heat input, ensuring the pipes remain intact and undistorted.
Conclusion
Tack welding is one of the best techniques for pipe and tube fabrication. It may seem like a small step, but its impact is huge. It holds everything together, ensuring pipes and tubes stay aligned and stable before the final welds are applied. Without tack welding, even the most skilled welder would struggle to achieve precision and strength in joints.
By preventing misalignment, reducing material stress, and saving time, tack welding lays the foundation for a successful project. Whether in plumbing, oil, or gas industries, this welding metals technique is critical to building systems that are safe, efficient, and built to last.
